General Instructions

Conventions, domain knowledge, and non-obvious patterns for agents working in this repository. Items in HIGHEST PRIORITY sections override conflicting guidance.

HIGHEST PRIORITY

Breaking changes: Do not add backward-compatibility layers or legacy support unless explicitly requested. Breaking changes are acceptable.

Artifacts: Do not create or modify tests, scripts, or one-off markdown docs unless explicitly requested.

Environment-specific artifacts: Never commit values discovered from a deployed environment, including Azure resource identifiers, subscription or tenant identifiers, service endpoints, cluster or registry names, generated OSMO platform values, image digest manifests, kubeconfigs, OSMO profiles, and credential files.

• Generate non-secret deployment details under infrastructure/setup/generated/<environment>/, which is gitignored, by following .github/skills/environment-deployment/SKILL.md.
• Keep kubeconfigs, OSMO profiles, tokens, registry credentials, Terraform state, and other secrets outside the generated bundle and outside Git.
• Treat checked-in RFC1918 addresses, resource shapes, and other clearly documented values as instructional defaults or examples. Do not remove or replace them solely because they resemble environment configuration.

Comment policy: Never include thought processes, step-by-step reasoning, or narrative comments in code.

• Keep comments brief and factual; describe behavior/intent, invariants, edge cases.
• Remove or update comments that contradict the current behavior. Do not restate obvious functionality.
• Do NOT add temporal or plan-phase markers (e.g. "Phase 1 cleanup", "... after migration", dates, or task references) to code files. When editing or updating any code files, always remove or replace these types of comments.

Conventions and Styling: Always follow conventions and styling in this codebase FIRST for all changes, edits, updates, and new files.

Proactive fixes: Always fix problems and errors you encounter, even if unrelated to the original request. Prefer root-cause, constructive fixes over symptom-only patches.

• Always correct all incorrect or problematic conventions, styling, and redundant and/or misleading comments.

Edit tools: Never use insert_edit_into_file tool when other edit and file modification tools are available.

Repository Structure

Directory	Purpose
infrastructure/terraform/prerequisites/	Azure subscription setup, provider registration
infrastructure/terraform/	Terraform infrastructure (AKS, networking, storage, identity)
infrastructure/terraform/vpn/	Point-to-site VPN for private cluster access
infrastructure/setup/	Post-deploy shell scripts (Helm charts, AzureML, OSMO)
training/rl/	RL training package (SKRL, RSL-RL, Isaac Lab)
training/il/	IL training package (LeRobot ACT/Diffusion)
evaluation/sil/	Software-in-the-loop evaluation scripts and workflows
data-management/viewer/	Dataset analysis tool (FastAPI backend + React frontend)
data-pipeline/capture/	Recording configuration and data capture
scripts/	CI/CD scripts, shared libraries, linting, security, and Pester tests
scripts/lib/	Cross-domain shared shell and PowerShell libraries
external/IsaacLab/	NVIDIA Isaac Lab (cloned for IntelliSense only, not built locally)
docs/contributing/	Architecture, roadmap, style guides, contribution workflow

• Do not modify files in external/
• Version: managed by release-please across pyproject.toml and package.json
• Python: >=3.12, managed by uv (not pip); hatchling builds training/rl into wheel
• Linting: npm run lint:md (markdownlint-cli2), npm run spell-check (cspell), npm run lint:yaml (yaml-lint)

Terraform Conventions

• Boolean variable prefix: should_ exclusively (NOT enable_ or is_)
• resource_group variable type: object({ id, name, location }) — never a string
• variables.core.tf: every module contains the SAME five core variables (environment, resource_prefix, instance, resource_group, optionally location)
• variables.deps.tf: typed object dependencies from other modules (used in modules/sil/, modules/dataviewer/)
• Root deployments do NOT have variables.core.tf; core variables live in variables.tf
• Resource naming: {abbreviation}-{resource_prefix}-{environment}-{instance} (e.g., aks-nvidia-dev-001)
• No-hyphen naming for Key Vault (kv), Storage (st), ACR (acr): kv{prefix}{env}{instance}
• Standalone deployments (vpn/, automation/, dns/): use data sources to discover existing resources — no remote state references
• State management: local .tfstate files only (no remote backend)
• Resource conditionals: should_* boolean flags with count meta-argument
• Module file order: main.tf, variables.tf, variables.core.tf, outputs.tf, versions.tf
• Comment style: /** */ file-level, /* */ variable groups, // inline, // === section separators
• Provider: Microsoft partner ID acce1e78-0375-4637-a593-86aa36dcfeac in versions.tf; required_version = ">= 1.9.8, < 2.0"

# Resource naming
locals {
  resource_name_suffix = "${var.resource_prefix}-${var.environment}-${var.instance}"
}

# Boolean variable convention
variable "should_deploy_postgresql" { type = bool; default = true }

Shell Script Conventions

Detailed template and structure in .github/instructions/shell-scripts.instructions.md.

• Two Terraform output libraries exist (do NOT mix them):
  • scripts/lib/common.sh: dot-path accessors (tf_get, tf_require) for deploy and submission scripts
  • scripts/lib/terraform-outputs.sh: jq-path accessor (get_output) for submission scripts
• .env.local load order: common.sh loads .env.local BEFORE defaults.conf; override defaults via ${VAR:-default} pattern
• Idempotent K8s operations: kubectl create --dry-run=client -o yaml | kubectl apply -f -
• Every script supports --config-preview (print configuration and exit without changes)
• Every script ends with section "Deployment Summary" + print_kv calls
• defaults.conf is the central version and namespace configuration file for all deploy scripts

Library Functions (scripts/lib/common.sh)

Function	Purpose
info, warn, error, fatal	Colored logging (fatal exits)
section "Title"	Print section header
print_kv "Key" "$val"	Print key-value pair
require_tools tool1 tool2	Validate CLI tools exist
tf_get "$json" "path" "default"	Extract optional Terraform output
tf_require "$json" "path" "desc"	Extract required Terraform output
connect_aks "$rg" "$cluster"	Get AKS credentials
ensure_namespace "$ns"	Create namespace idempotently

Python Conventions

• Package management: uv (not pip); hatchling builds; Python >=3.12
• Child configs extend root ruff config: extend = "../../pyproject.toml"
• from __future__ import annotations required as the first import in every module

Dependency Locking

Every Python subproject carries a committed uv.lock next to its pyproject.toml. The lock is the single resolution source of truth — runtime-flat requirements.txt files are NOT committed; they are derived at build time.

• Regenerate a lock with uv lock (or uv lock --upgrade) after editing pyproject.toml — never hand-edit uv.lock, and never run uv pip compile to produce a committed flat file.
• Derive runtime dependencies at build/submit time via uv export --frozen --no-hashes --no-emit-project piped into uv pip install --no-deps. --frozen guarantees the lock is read, not regenerated.
• Do not reintroduce committed flat requirements files (for example requirements-aml-mirror.txt); derive them from the lock instead.
• Dependabot regenerates affected locks natively. The read-only uv lock --check CI gate (uv-lock-consistency.yml, run via npm run lint:uvlock) fails any PR whose lock drifts from its manifest, so no manual uv lock step is required on Dependabot PRs.
• [tool.uv] environments constrains the universal lock to supported platforms (for example linux x86_64 for GPU/Isaac subprojects). Preserve these markers when regenerating.

Import Ordering

from __future__ import annotations

import logging
import os
from collections.abc import Iterator, Sequence
from pathlib import Path
from typing import TYPE_CHECKING, Any

import numpy as np
from fastapi import APIRouter, Depends, HTTPException

from training.rl.scripts.skrl_mlflow_agent import create_mlflow_logging_wrapper

if TYPE_CHECKING:
    from azure.storage.blob import BlobServiceClient

stdlib → third-party → first-party (blank-line separated). collections.abc over typing for Iterator, Sequence, Callable. TYPE_CHECKING guard for heavy optional imports.

Naming

Pattern	Convention	Examples
Classes	PascalCase	AzureMLContext, StorageError
Enums	PascalCase StrEnum	TaskCompletenessRating(StrEnum)
Public functions	snake_case	load_metadata(), prepare_for_shutdown()
Private functions	_snake_case	_parse_mlflow_log_interval()
Module constants (private)	_UPPER_SNAKE	_LOGGER, _DEFAULT_MLFLOW_INTERVAL
Module constants (public)	UPPER_SNAKE	NUM_JOINTS, CONTROL_HZ

Type Annotations

All functions (public and private) have full parameter + return annotations. Local variables are NOT annotated.

# Built-in generics (not typing.List, typing.Dict)
list[str], dict[str, int], tuple[int, int]

# Union with pipe (not Optional)
str | None, Path | None

# Constrained types
Annotated[float, Field(gt=0)]
Literal["local", "azure"]

Logging

Domain	Variable	Logger Name
Training/RL/Eval	_LOGGER	Custom domain ("isaaclab.skrl")
Backend/Dataviewer	logger	__name__

Always %-style formatting: _LOGGER.warning("Invalid %s, using default (%d)", arg, default). Never f-strings in log calls.

Error Handling

• Domain-specific exceptions: AzureConfigError(RuntimeError), StorageError(Exception)
• API errors: raise HTTPException(status_code=404, detail="Dataset not found")
• Required env vars: require_env("AZURE_SUBSCRIPTION_ID") (raises RuntimeError)
• Optional deps: try: import pyarrow ... except ImportError: PARQUET_AVAILABLE = False

FastAPI Architecture

• Layer flow: routers/ → services/ → storage/ (ABC adapter pattern)
• Singletons: module-level variable + factory (_dataset_service + get_dataset_service())
• Input validation: Depends() factories (path_string_param(), query_string_param())
• Auth: global Depends(require_auth) on router-level; CSRF via Depends(require_csrf_token) on mutations
• Input sanitization: CR/LF stripping, null byte rejection, path traversal prevention

Ruff Configuration

target-version = "py312"
line-length = 120
select = ["E", "W", "F", "I", "UP", "B", "SIM", "RUF"]
quote-style = "double"

React/TypeScript Conventions

Detailed rules in .github/instructions/dataviewer.instructions.md.

• Stack: Vite 8, React 19, TypeScript ~6.0, Tailwind CSS v4 + shadcn/ui, Zustand v5, TanStack Query v5

File Naming

Category	Convention	Examples
Components	PascalCase .tsx	TrajectoryPlot.tsx, CameraSelector.tsx
Stores	kebab-case .ts	annotation-store.ts, edit-store.ts
Hooks	kebab-case .ts	use-datasets.ts, use-annotations.ts
Types	kebab-case .ts	annotations.ts, api.ts
UI primitives	kebab-case .tsx	button.tsx, dialog.tsx
Barrels	index.ts	Every feature folder

Component Patterns

• Named exports only (no export default)
• memo for expensive renders
• ref as a prop for shadcn/ui primitives (React 19 ref-as-prop pattern)
• Props interfaces defined in-file above the component

TypeScript

• interface for object shapes (props, state, API types)
• type for unions, aliases, literals, store intersections
• @/ path alias → ./src/*; strict mode enabled
• export type in barrel files for type-only re-exports

State Management

• Zustand for client state (devtools middleware, separate selectors files)
• TanStack Query for server state (query key factory pattern)
• Hybrid sync: query hooks fetch → useEffect syncs to Zustand stores

Styling

• Tailwind CSS v4 utility-first + cn() utility (clsx + tailwind-merge)
• CVA (class-variance-authority) for component variants
• No CSS modules, no styled-components

API Client

• Raw fetch in src/lib/api-client.ts (no axios)
• CSRF token caching + X-CSRF-Token header on mutations
• MSAL auth via getAuthHeaders()
• Automatic snakeToCamel key transformation on responses

ESLint/Prettier

• ESLint flat config: simple-import-sort (error), jsx-a11y, @tanstack/query
• Prettier: no semicolons, single quotes, trailing commas, 100 char width, Tailwind plugin

Testing Patterns

Tests always test behaviors. Mocks reserved for external dependencies (Azure SDK, MLflow, YOLO).

Python Tests

• File naming: test_*.py
• Class-based grouping by feature (class TestDatasetDiscovery:)
• Patching: monkeypatch (not unittest.mock.patch decorator)
• Async: asyncio_mode = "auto" (no per-test decorator)
• Fixtures: session-scoped for expensive setup; function-scoped for isolation
• Heavy deps: sys.modules injection for Azure/MLflow stubs
• Singletons: reset module-level _service = None between tests
• Coverage: --cov=training --cov-report=term-missing --cov-report=xml

TypeScript Tests

• Framework: Vitest + @testing-library/react + jest-dom
• File naming: *.test.ts (logic), *.test.tsx (React)
• Module mocking: vi.mock('@/path') with vi.hoisted()
• Store tests: direct getState() calls, reset() in beforeEach
• Component tests: render() + screen queries + userEvent
• Hook tests: renderHook() from @testing-library/react
• Cleanup: vi.restoreAllMocks() in afterEach

PowerShell Tests

• Framework: Pester 5; file naming: *.Tests.ps1
• Structure: Describe/Context/It with tags (Unit, Integration)
• Mocking: Mock -ModuleName + -ParameterFilter

Documentation Conventions

Detailed rules in .github/instructions/docs-style-and-conventions.instructions.md.

Term	Use	Avoid
Deploy	Provision infrastructure or install components
Setup	Post-deploy configuration
Cleanup	Remove components, keep infrastructure
Destroy	Delete Azure infrastructure	Teardown

• Voice: direct, technical, imperative. No hedging, no conversational filler.
• H2 in README.md files: prefix with emoji (## 📋 Prerequisites, ## 🚀 Quick Start)
• Alerts: GitHub-flavored > [!NOTE], > [!WARNING] — NOT legacy > **Note**:
• Structured data: use tables, not bold-prefix list items
• Avoid H4+ headings; restructure instead
• Numbered lists only for sequential content
• Code blocks: always specify language

Coding Agent Environment

GitHub Copilot Coding Agent runs in a cloud GitHub Actions environment, separate from the local devcontainer. The .github/workflows/copilot-setup-steps.yml workflow pre-installs tools so the cloud agent can author code, run linters, and execute tests with the same capabilities a local contributor has in .devcontainer/devcontainer.json.

The cloud-agent workflow installs actionlint for npm run lint:yaml. It does NOT install: golangci-lint, terraform-docs, osmo, ngc, Azure CLI, kubectl, helm, k9s. These are Azure-deployment or local-validation tools the agent does not need to author or test code.

The cloud-agent workflow installs gh aw (GitHub Agentic Workflows CLI) pinned to a released tag (gh extension install github/gh-aw --pin <tag>) so every session resolves a fixed, auditable version instead of upstream HEAD. Pin to a stable release at or above the compiler_version embedded in the repo's .lock.yml files — gh aw reads workflows compiled by older versions — and bump the --pin ref when adopting a newer release.

Environment Synchronization

Treat .github/workflows/copilot-setup-steps.yml and .devcontainer/devcontainer.json as paired environments. When changing toolchain versions in either file, evaluate whether the other needs the same change:

• Language runtimes (Python, Node, Go, Terraform) MUST stay aligned — drift causes "works locally, fails in agent" bugs.
• Test runners (Pester, pytest, vitest) MUST stay aligned for the same reason.
• Azure-deployment tools (az, kubectl, helm, OSMO, NGC) live in the devcontainer only.
• Lint-only tools may live in either or both depending on whether the agent invokes the linter.

The weekly copilot-setup-steps.yml cron and Test-BinaryFreshness.ps1 weekly run together surface upstream drift across both surfaces.

Cloud-Agent RPI Wrapper

The Bootstrap hve-core RPI persona step in copilot-setup-steps.yml runs outside the cloud-agent firewall and downloads the latest microsoft/hve-core@main rpi-agent.agent.md plus every subagents/*.agent.md into .copilot-tracking/upstream/hve-core-rpi/.

The Physical-AI RPI umbrella (.github/agents/physical-ai-rpi.agent.md) and its hidden generic worker (.github/agents/physical-ai-rpi-worker.agent.md) read those files at session start. The worker resolves a persona: <stem> dispatch parameter to a workspace path under .copilot-tracking/upstream/hve-core-rpi/subagents/, so new upstream personas auto-onboard via the next bootstrap with no change in this repo.

See docs/reference/copilot-artifacts.md for the full umbrella/worker rationale.

Git Workflow

Full specification in .github/instructions/commit-message.instructions.md.

• Conventional commits: type(scope): description (<100 bytes subject line)
• Types: feat, fix, refactor, perf, style, test, docs, build, ops, chore, security
• Scopes: (infrastructure), (pipeline), (data), (sdg), (training), (evaluation), (deployment), (intelligence), (scripts), (docs), (agents), (prompts), (instructions), (skills), (templates), (adrs), (settings), (build)
• Body: 0-5 bulleted items, <300 bytes total
• Footer: always ends with emoji + - Generated by Copilot

Deployment Pipeline

Four ordered deployment steps:

Step	Directory	Description
1	infrastructure/terraform/prerequisites/	Azure subscription init, provider registration
2	infrastructure/terraform/	Terraform infrastructure (AKS, networking, storage, identity)
3	infrastructure/terraform/vpn/	Point-to-site VPN (required for private clusters before any kubectl)
4	infrastructure/setup/	Helm charts, AzureML extension, OSMO control plane and backend

• Default is private AKS — VPN step (3) is REQUIRED before any kubectl or Helm commands unless should_enable_public_access = true
• Three network modes: Full Private (default), Hybrid, Full Public
• Always run source infrastructure/terraform/prerequisites/az-sub-init.sh before any terraform or deploy script commands
  • Exports ARM_SUBSCRIPTION_ID and validates Azure CLI authentication
  • If the user has not done az login, the script requires interactive input
• Deploy scripts (infrastructure/setup/) must run in numeric order (01 → 02 → 03 → 04)
• Each deploy script is idempotent and safe to re-run

OSMO Platform

OSMO is an external orchestration platform for multi-cluster Kubernetes workloads. Documentation and CLI source live in the adjacent ../OSMO/ repository.

• CLI pattern: osmo <module> <command> [args] — installed via native binary (curl/bash), NOT pip
• Dev login: osmo login <url> --method dev --username guest
• Workflow YAML uses Jinja templates ({{ }}) — NOT Helm Go templates
• Two payload strategies:
  • Base64-encoded archive: ~1MB limit, embedded in workflow YAML
  • Dataset folder injection: unlimited size, versioned, folder name in workflow env vars
• Configuration mode: ConfigMap; all config is in Helm values files
• Namespace layout:
  • osmo-control-plane — service components
  • osmo-operator — backend operator
  • osmo-workflows — job execution pods
• KAI Scheduler with coscheduling (gang-scheduling for multi-GPU jobs)
• oauth2Proxy.enabled: false REQUIRED in Helm values when no OIDC provider is configured
• Prerelease mode: OSMO_USE_PRERELEASE=true switches both chart and image versions
• Service URL exposed via AzureML ingress controller internal load balancer
• Storage: workload identity only — credential shape azure://<account>/<container>

AzureML Integration

AzureML runs on Arc-connected AKS clusters via the AzureML Kubernetes extension.

• Extension installed via az k8s-extension create --extension-type Microsoft.AzureML.Kubernetes (script-based, NOT Terraform managed)
• InstanceType CRDs define compute profiles: defaultinstancetype, gpuspot, gpu
• Job YAML schema: $schema: .../commandJob.schema.json
  • No empty strings in YAML values — use sentinel values (auto, none, placeholder)
  • Submit with runtime overrides: az ml job create --file <yaml> --set "display_name=..." --set "environment_variables.KEY=value"
• Code snapshot: each domain's workflow directory uploaded to AzureML via code: . relative path
• Identity chain: Terraform-created managed identity → federated credentials → K8s service accounts (azureml:default, azureml:training)
• Model validation mode: mode: download (NOT ro_mount) — workaround for workload identity auth failures in data-capability sidecar
• Multi-node: Volcano scheduler installed by AzureML extension when installVolcano: true
• Training submission scripts use scripts/lib/terraform-outputs.sh to resolve infrastructure values

Training Pipeline

Training runs in NVIDIA Isaac Lab containers on GPU nodes via AzureML or OSMO.

• Container: DEFAULT_ISAAC_LAB_IMAGE from scripts/lib/common.sh (currently nvcr.io/nvidia/isaac-lab:2.3.2)
  • Python path: /isaac-sim/kit/python/bin/python3 (NOT system Python)
  • PYTHON env var: set to /workspace/isaaclab/isaaclab.sh -p (wrapper activating correct conda env)
• EULA acceptance: all jobs MUST set ACCEPT_EULA: "Y" and PRIVACY_CONSENT: "Y"
• numpy: pinned to 1.26.4 in training/rl/pyproject.toml (locked in training/rl/uv.lock) for ABI compatibility with Isaac Sim
• Shutdown bug: Isaac Sim 4.x hangs after env.close() on vGPU nodes; fixed via simulation_shutdown.py with timeline stop + SIGKILL watchdog
• Vulkan: NVIDIA_DRIVER_CAPABILITIES=all required (Isaac Sim needs Vulkan for rendering)
• RL frameworks: SKRL (primary), RSL-RL (alternative)
• Behavioral cloning: LeRobot (ACT/Diffusion policies), runtime-installed via uv pip in AzureML container
• MLflow: monkey-patches agent._update for metric interception
  • Logging intervals: step, balanced (default, every 10 steps), rollout, or custom integer
• Checkpoint flow: training writes to local FS → mirrored into $AZURE_ML_OUTPUT_CHECKPOINTS at job exit → AzureML uploads as uri_folder

GPU Configuration

GPU	Driver Source	MIG Strategy	Special Requirements
H100	GPU Operator datacenter driver	Disabled	Standard
RTX PRO 6000	Microsoft GRID DaemonSet (580.105.08-grid-azure)	mig.strategy: single (REQUIRED)	nvidia.com/gpu.deploy.driver=false node label

• MIG strategy single is required for RTX PRO 6000: Azure vGPU host enables MIG, and strategy: none causes CUDA_ERROR_NO_DEVICE because NVIDIA_VISIBLE_DEVICES receives bare GPU UUIDs instead of MIG device UUIDs
• NVIDIA GPU Operator: driver deployment MUST be disabled on nodes with pre-installed Azure GRID drivers
• NVIDIA_DRIVER_CAPABILITIES=all required for all GPU workloads (Vulkan, compute, video)

Validation

Run npm install (or npm ci) before any npm run lint commands. shellcheck must be installed separately (brew install shellcheck on macOS).

Quick Reference

File Type	Validation Commands
*.md	npm run lint:md, npm run spell-check, npm run format:tables
*.tf, *.tfvars	npm run lint:tf, npm run lint:tf:validate, terraform plan, npm run test:go (output contract)
*.tftest.hcl	npm run test:tf, cd infrastructure/terraform/modules/<name> && terraform test or cd infrastructure/terraform && terraform test
*.go	npm run lint:go (golangci-lint), npm run test:go (go test), ./infrastructure/terraform/e2e/run-contract-tests.sh (Terraform output contract, requires terraform-docs)
*.sh	shellcheck <file>
*.ps1	npm run lint:ps
*.yml (GitHub Actions)	npm run lint:yaml
data-management/viewer/frontend/**	cd data-management/viewer/frontend && npm run validate (type-check + lint + test)
data-management/viewer/backend/**	cd data-management/viewer/backend && pytest and ruff check src/
training/**/*.py	cd training && ruff check . && pytest
evaluation/**/*.py	cd evaluation && ruff check . && pytest
*.py, workflow YAML with HF downloads	npm run lint:hfpins (HuggingFace revision-pin guard)
data-pipeline/**/*.py	cd data-pipeline && ruff check .
uv.lock, pyproject.toml	uv lock (regenerate the lock), npm run lint:uvlock (verify lock/manifest consistency)
Any file	npm run spell-check

Linting

• npm run lint:all runs lint:md + lint:ps + lint:links + lint:yaml + lint:tf + lint:go + lint:sh + lint:py + lint:hfpins + lint:uvlock in sequence
• npm run spell-check and npm run format:tables are NOT included in lint:all — run them separately
• npm run lint:md:fix and npm run format:tables auto-fix markdown issues
• .copilot-tracking/ is excluded from markdown linting via .markdownlint-cli2.jsonc

Terraform

Terraform validation is per-directory — each deployment directory has its own provider configuration and state:

• Run tflint --init once from the repository root before the first local npm run lint:tf run; this installs the Azure provider ruleset declared in .tflint.hcl
• npm run lint:tf — TFLint recursive linting across all directories
• npm run lint:tf:validate — terraform fmt -check -recursive + terraform init -backend=false && terraform validate per deployment directory (., vpn/, dns/, automation/)
• terraform plan -var-file=terraform.tfvars — validates configuration against provider APIs (requires source infrastructure/terraform/prerequisites/az-sub-init.sh first)
• CI: .github/workflows/terraform-validation.yml reusable workflow runs lint:tf:validate with soft-fail: true
• npm run test:tf — terraform test across all modules with tests/ directories; uses mock_provider and command = plan — no Azure credentials required
• Per-module: cd infrastructure/terraform/modules/<name> && terraform init -backend=false && terraform test
• CI: .github/workflows/terraform-tests.yml reusable workflow runs terraform test independently from validation

Shell Scripts

• shellcheck infrastructure/setup/*.sh training/**/*.sh evaluation/**/*.sh — static analysis for deploy and submission scripts
• Deploy scripts (infrastructure/setup/) support --config-preview — prints configuration and exits without making changes; use for dry-run validation after modifying any deploy script

Pester Tests

• npm run test:ps — runs Pester tests in scripts/tests/ covering linting helpers and security checks

CI/CD Pipeline

• Two orchestrators: main.yml (push to main), pr-validation.yml (PRs) using reusable workflow_call workflows
• PR validation sequence: spell check → markdown lint → table format → frontmatter → PSScriptAnalyzer → YAML lint → link check → Python lint → Python tests → uv lock consistency → frontend tests → Pester → dependency review → dependency pinning → CodeQL
• Security: all actions SHA-pinned (not tag-referenced), persist-credentials: false on all checkouts
• Security workflows: CodeQL (weekly + PR), Gitleaks (push + PR), OpenSSF Scorecard (weekly), dependency review (PR), SHA pinning scan (PR + main)
• Pre-commit: Husky v9 + lint-staged on frontend files only (ESLint + Prettier auto-fix)
• Codecov: 12+ flags including pytest-*, vitest/vitest-*, pester, go, terraform; 80-100% range; carryforward enabled; OIDC tokenless upload via codecov/codecov-action@v6

Contributing References

Document	Content
docs/contributing/architecture.md	Current and future architecture (hub-spoke, multi-node, 8 lifecycle domains)
docs/contributing/ROADMAP.md	Migration phases from monolithic to multi-node (Q2-Q3 2026)
docs/contributing/infrastructure-style.md	Terraform naming, modules, commenting (NOTE: boolean prefix guidance is outdated; use should_ per this file)
docs/contributing/contribution-workflow.md	Branch naming, PR process, review checklist
docs/contributing/prerequisites.md	Required tools and versions
docs/contributing/deployment-validation.md	Post-deployment verification steps
docs/contributing/cost-considerations.md	Azure resource cost guidance
docs/contributing/security-review.md	Security review checklist
docs/gpu-configuration.md	Detailed GPU driver and operator configuration
docs/mlflow-integration.md	MLflow tracking and experiment management
.github/instructions/dataviewer.instructions.md	Frontend coding patterns, component design, testing philosophy
.github/instructions/shell-scripts.instructions.md	Shell script template, section order, library function reference
.github/instructions/commit-message.instructions.md	Conventional commit format, types, scopes, footer requirements

Physical AI Toolchain

Overview

Physical AI and robotics are moving from headlines and experimentation into real-world industrial deployment. The shift creates practical implications for how human-robot-AI collaboration becomes an operational capability in manufacturing, logistics, healthcare, and autonomous systems. Operationalizing physical intelligence at scale, across fleets and federations of intelligent systems, is a challenge no single OEM or software vendor can deliver alone.

Physical AI is the strategic inflection point for AI platforms, and robotics is the hero use case. It sits at the intersection of cloud, edge, data, and agentic AI.

Physical AI Toolchain is an open-source, production-ready framework that integrates Microsoft Azure cloud services with NVIDIA's physical AI stack, accelerating robotics and physical AI developers to automate and scale data curation, augmentation, and evaluation across perception, mobility, imitation learning, and reinforcement learning pipelines. It provides:

• Accelerate physical AI innovation. From edge data capture on NVIDIA Jetson devices through cloud-based training on GPU clusters to model deployment at the edge, every stage of the physical AI lifecycle is addressed with tested, repeatable automation.
• Operationalize physical intelligence. Built on Azure Machine Learning, Azure Kubernetes Service, Azure Arc, and Azure Storage with Entra ID authentication, managed identities, and Infrastructure as Code, so workloads meet the security, compliance, and governance requirements of production environments.
• Scale through ecosystem collaboration. Native support for NVIDIA Isaac Sim and Isaac Lab for simulation and reinforcement learning, NVIDIA OSMO for workflow orchestration, and the NVIDIA Jetson platform for edge inference provides a hardware-accelerated path from research to deployment, enabled by deep partnership across the ecosystem.
• Human-robot-AI agent collaboration. Agentic engineering lets teams move from isolated machines to coordinated, instruction-driven workflows. AI agents can turn high-level instructions into executed pipelines, but they are a convenience layer, not a requirement. Start with manual workflows, introduce agents when you are ready, and customize their behavior to match your team's trust boundaries.
• Broad physical AI applicability. While robotics is the hero use case, the architecture supports any physical AI workload that follows the simulate → train → evaluate → deploy pattern, including autonomous mobile robots, robotic manipulation, industrial inspection, and embodied AI research.

Whether you are evaluating Azure and NVIDIA as a platform for physical AI, planning a proof of concept, or scaling to production, this toolchain provides a tested solution and working code to accelerate your timeline.

Who This Is For

• Robotics researchers moving from Isaac Sim prototypes to production-grade training and deployment pipelines
• Platform engineers standardizing physical AI pipelines across teams with Infrastructure as Code and repeatable workflows
• Enterprise teams piloting Jetson + Azure deployments and need security, compliance, and scalability from day one

[!NOTE] Who it's not for (yet): This toolchain targets production and pre-production workloads. It is not designed for hobbyist projects, ROS beginners learning the basics, or general-purpose desktop demos. T0 is a first-class single-robot entry point when the goal is a production-oriented capture -> train -> validate -> run workflow.

[!TIP] Start on a laptop, not in the cloud. The default starting path (T0 — Dev) closes the full capture -> train -> validate -> run loop on one laptop and one robot, with zero cloud and zero Kubernetes. Cloud, Kubernetes, Arc, and fleet components are tier-gated additions you adopt only when your scale demands them, not prerequisites. See Start on a Laptop (T0 — Dev) below.

🛫 Start on a Laptop (T0 — Dev)

Adoption is modeled as six graduated tiers (T0-T5). Each tier states the minimum edge and cloud infrastructure required to complete the full training lifecycle: capture demonstrations on a robot, train an imitation policy, validate it, and run that policy back on the robot. Each tier is a legitimate stopping point. You adopt only the infrastructure your scale actually demands; the heavy components are opt-in additions, not a baseline you must stand up first.

T0 — Dev is the default starting path. One laptop, one robot, and the full loop:

• Capture: ROS 2 bag recording to local disk. No Arc, no ACSA, no PVC.
• Move data: cp or rsync from robot to laptop.
• Curate: the dataviewer in local mode on the laptop.
• Train: lerobot-train on the laptop, on CPU or a local GPU.
• Track: training writes checkpoints and logs to local disk; hosted tracking enters at T2.
• Validate: run-local-lerobot-eval.py / play.py locally.
• Run on robot: the inference node as a plain process or container. No Flux, no gating, no GitOps.

Edge infra: ROS 2 and Docker only. Cloud infra: none.

Tier	When to use it	Quick start
T0 — Dev ⭐	Default. One laptop, one robot; zero cloud and zero Kubernetes.	Tier 0 — Dev recipe
T1 — Lab	One site, a few robots, a shared GPU box. First cloud: storage.	Tier 1 — Lab recipe
T2 — Pilot ✅	Recommended production. One site at scale; cloud training default.	Tier 2 — Pilot recipe
T3 — Production	Advanced. Single-site declarative deployment (local k3s + Flux, no Arc).	Tier 3 — Production recipe
T4 — Scale	Advanced. Multi-site fleet delivery; Arc as reachability broker.	Tier 4 — Scale recipe
T5 — Operate	Roadmap. Fleet intelligence for drift detection and retraining.	Tier 5 — Operate recipe

⭐ default · ✅ recommended production

Cloud training, model registries, Kubernetes (k3s/AKS), Azure Arc, and the fleet delivery/intelligence planes enter the picture only at the tier where they earn their keep. Pick your tier in Getting Started → Choose Your Tier, read the tier-by-tier infrastructure boundaries in the Architecture Overview, and consult the canonical Tier Model for the authoritative tier table and vocabulary.

[!NOTE] Roadmap honesty. T5 (Operate / fleet intelligence) is on the roadmap and not yet available. The fleet-intelligence domain is currently specified, with implementation planned. Today's shipping capability spans T0-T4.

What's Inside

Capability	Description
Simulation & Synthetic Data	Isaac Sim and Isaac Lab environments for RL task training and synthetic data generation
Edge Data Capture	ROS 2 demonstration recording on Jetson with chunking, compression, and cloud upload
Cloud Data Pipeline	Automated ROS-to-LeRobot conversion, quality validation, and event-driven orchestration
Training Infrastructure	OSMO + Azure ML integration for scalable RL and IL training with experiment tracking
Model Evaluation	Offline replay evaluation, Isaac Sim evaluation, and evaluation dashboards
Model Deployment	ONNX/TensorRT conversion, container packaging, and GitOps-based edge deployment
Agentic Workflows	Instruction-driven agents that orchestrate data collection, training, evaluation, and deployment end-to-end
Hybrid Architecture	Azure Arc, air-gapped training support, and MQTT telemetry for connected and disconnected sites

Key Features

• Infrastructure as Code: Terraform modules for reproducible Azure deployments
• Containerized Workflows: Docker-based Isaac Lab training with NVIDIA GPU support
• MLflow Integration: Automatic experiment tracking and model versioning
• Scalable Compute: Auto-scaling GPU nodes with pay-per-use cost optimization
• Enterprise Security: Entra ID integration with managed identities
• CI/CD Integration: Automated deployment pipelines with GitHub Actions
• Edge-to-Cloud Data Pipeline: Automated capture, upload, conversion, and validation
• Multi-Modal Training: Support for reinforcement learning and imitation learning workflows
• Agentic Pipeline Orchestration: Describe a task; agents handle data collection through policy deployment

Quick Start

./setup-dev.sh

The setup script installs Python 3.12 via uv, creates a virtual environment, and installs training dependencies. This is all the default path (T0 — Dev) needs: train, track, and validate locally on a laptop GPU with no Azure subscription.

Follow the Quickstart Guide for the default local-first walkthrough, then Choose Your Tier when you are ready to graduate to cloud training (T2 — Pilot) or beyond. The cloud, Kubernetes, and fleet steps are opt-in additions layered onto this working local baseline.

Documentation

Full documentation is available in the docs/ directory.

Guide	Description
Getting Started	Prerequisites, quickstart, and first training job
Deployment	Infrastructure provisioning and setup
Training	RL and IL training workflows, MLflow, and checkpointing
Security	Threat model, security guide, deployment responsibilities
Recipes	Guides that take you from a standing start to a working result
Contributing	Architecture, style guides, contribution workflow

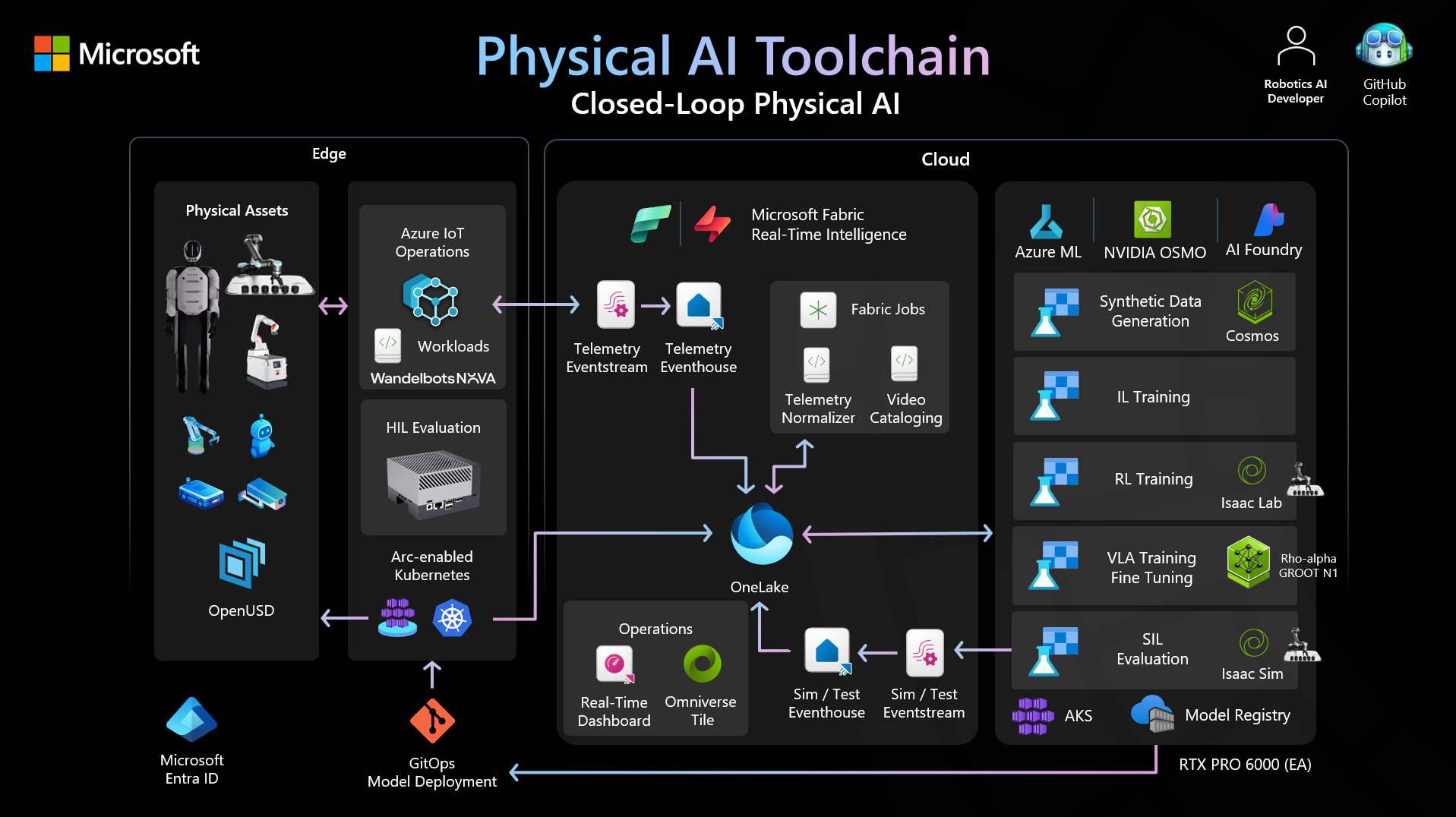

Architecture

The architecture is organized as graduated tiers (T0-T5): each component enters at the tier where it earns its keep, rather than as a baseline prerequisite. The default path (T0 — Dev) needs only the local components; everything below is an opt-in addition.

• NVIDIA Isaac Sim & Isaac Lab: Physics simulation and RL task environments
• NVIDIA Jetson: Edge inference and demonstration data capture
• Azure Storage: Cloud data and checkpoint storage (opt-in from T1 — Lab)
• Azure Machine Learning: Cloud training, experiment tracking, and model registry (default from T2 — Pilot)
• NVIDIA OSMO: Workflow orchestration and job scheduling (T2 — Pilot)
• Local k3s + FluxCD: Single-site declarative GitOps deployment, no Arc required (T3 — Production)
• Azure Arc + AKS: Cross-site reachability and identity broker for multi-site fleet delivery (T4 — Scale)
• Azure IoT Operations & Fabric: Telemetry aggregation and fleet intelligence (T5 — Operate, roadmap)

See the Architecture Overview for the per-tier infrastructure boundaries and the canonical Tier Model for the authoritative tier table.

Agentic Workflows

The toolchain includes agent-driven automation that collapses multi-stage physical AI pipelines into simple, instruction-level interactions.

How it works:

1. Describe the objective. Provide a natural-language instruction such as "collect 50 demonstrations of an inspection and sorting task and train an IL policy."
2. Agent plans and executes. The agent decomposes the objective into pipeline stages: data collection, conversion, training configuration, compute provisioning, and training launch. It then executes each stage using the toolchain's APIs and infrastructure.
3. Evaluate and iterate. The agent runs evaluation (simulation replay, success-rate metrics) and presents results. If the policy does not meet acceptance criteria, the agent adjusts hyperparameters or collects additional data and re-trains.
4. Deploy. Once a policy passes evaluation, the agent packages it (ONNX/TensorRT), builds a container image, and triggers GitOps deployment to target edge devices.

What agents can do today:

Capability	Description
Sample data collection	Configure Isaac Sim scenes and collect synthetic demonstration datasets
RL pipeline execution	Set up Isaac Lab tasks, launch OSMO training jobs, and track experiments in MLflow
IL pipeline execution	Convert demonstration data to LeRobot format, run imitation learning training
Policy evaluation	Execute offline replay and simulation-based evaluation against success criteria
Deployment promotion	Convert checkpoints, package containers, and push to edge via GitOps

Agents operate within the same security boundaries, managed identities, and RBAC controls as manual workflows. All agent actions are logged and auditable.

Guardrails and Control

Question	Answer
Are agents required?	No. Every pipeline stage has a manual CLI and API path. Agents are opt-in.
Can I use agents for some stages but not others?	Yes. Agents are composable: use them for data collection but run training manually, or vice versa.
Are agents opinionated or customizable?	Customizable. Agent behavior is driven by configuration files you control: which stages to automate, compute budgets, approval gates, and evaluation thresholds.
What happens if an agent makes a mistake?	Agents request human approval before destructive actions (deploying to production, deleting data). All intermediate artifacts are versioned and recoverable.
How are agent actions audited?	Every agent action is logged with the initiating instruction, parameters, and outcome. Logs integrate with Azure Monitor and MLflow.

For Developers

Repository Structure

Directory	Purpose
src/	Core Python modules: conversion, validation, training utilities
infra/	Terraform and Bicep templates for Azure resource provisioning
config/	YAML configuration schemas for recording, training, and deployment
scripts/	Setup, benchmarking, and operational helper scripts
tests/	Unit, integration, and end-to-end test suites
docs/	All project documentation

Development Environment

Prerequisites:

• Python 3.12+
• Docker with NVIDIA Container Toolkit
• Terraform 1.5+ (for infrastructure deployment)
• Azure CLI with an active subscription
• NVIDIA GPU (local development) or Azure GPU VM

Run the test suite (the four component suites mirror the CI split):

# Run every component at once (uses testpaths from pyproject.toml)
uv run pytest

# Or run a single component
uv run pytest training/tests -v
uv run pytest data-management/tools/tests -v
uv run pytest data-pipeline/capture/tests -v
uv run pytest fleet-deployment/inference/tests -v

See prerequisites for the complete setup guide.

Contributing

Contributions are welcome. Whether fixing documentation or adding new training tasks:

1. Read the Contributing Guide
2. Review open issues
3. See the prerequisites for required tools

Verifying Git Tags

All release tags are signed. Verify a release tag before using it in production workflows:

git fetch --tags
git tag -v v1.0.0

[!NOTE] git tag -v confirms cryptographic integrity and the Rekor entry but does not validate the signer identity. CI gates each v* tag with constrained gitsign verify-tag, binding the signature to the pinned workflow identity. For identity-constrained local verification, run gitsign verify-tag --certificate-identity 'https://github.com/microsoft/physical-ai-toolchain/.github/workflows/main.yml@refs/heads/main' --certificate-oidc-issuer 'https://token.actions.githubusercontent.com' v1.0.0.

This repository uses Sigstore gitsign keyless signing for release tags. For tag signing policy and maintainer guidance, see CONTRIBUTING.md.

Roadmap

See the project roadmap for priorities, timelines, and success metrics.

Acknowledgments

This toolchain builds upon:

• NVIDIA Isaac Lab: RL task framework
• NVIDIA Isaac Sim: physics simulation
• NVIDIA OSMO: workflow orchestration
• LeRobot: imitation learning dataset format
• Built with HVE Core

🤖 Responsible AI

Microsoft encourages customers to review its Responsible AI Standard when developing AI-enabled systems to ensure ethical, safe, and inclusive AI practices. Learn more at Microsoft's Responsible AI.

⚠️ Deprecations

No interfaces are currently deprecated. When deprecations are announced, they appear here with migration guidance and removal timelines.

See the Deprecation Policy for how interface changes are communicated and managed.

Legal

This project is licensed under the MIT License.

See SECURITY.md for the security policy and vulnerability reporting.

See GOVERNANCE.md for the project governance model.

See SUPPORT.md for support options and issue reporting.

Trademark Notice

This project may contain trademarks or logos for projects, products, or services. Authorized use of Microsoft trademarks or logos is subject to and must follow Microsoft's Trademark & Brand Guidelines. Use of Microsoft trademarks or logos in modified versions of this project must not cause confusion or imply Microsoft sponsorship. Any use of third-party trademarks or logos are subject to those third-party's policies.

---

🤖 Crafted with precision by ✨Copilot following brilliant human instruction, then carefully refined by our team of discerning human reviewers.
